FiberHome CAT 6 24AWG PVC Indoor (LSZH) 1

FiberHome CAT 6 24AWG PVC Indoor (LSZH) 2

FiberHome CAT 6 24AWG PVC Indoor (LSZH) 3

FTP/UTP

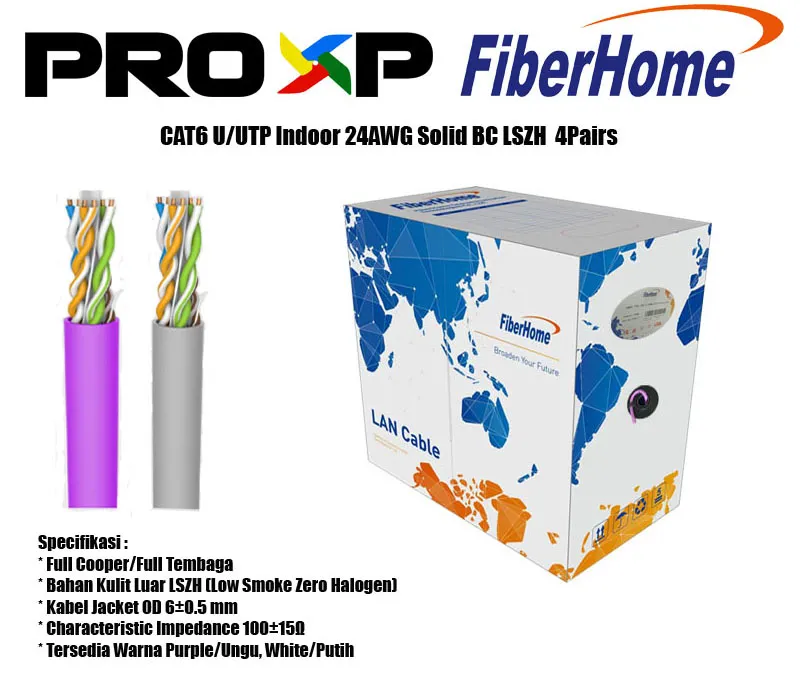

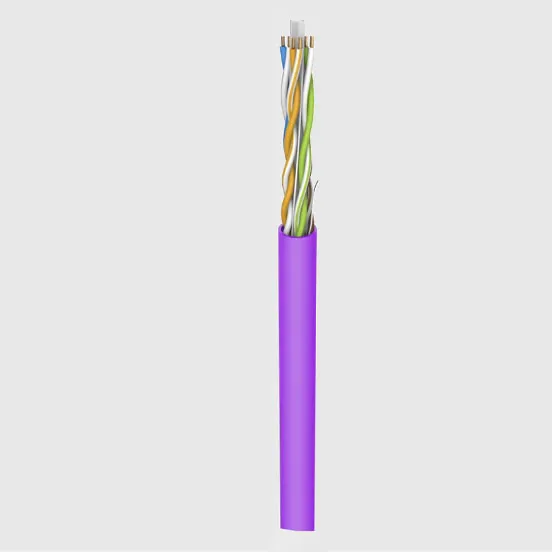

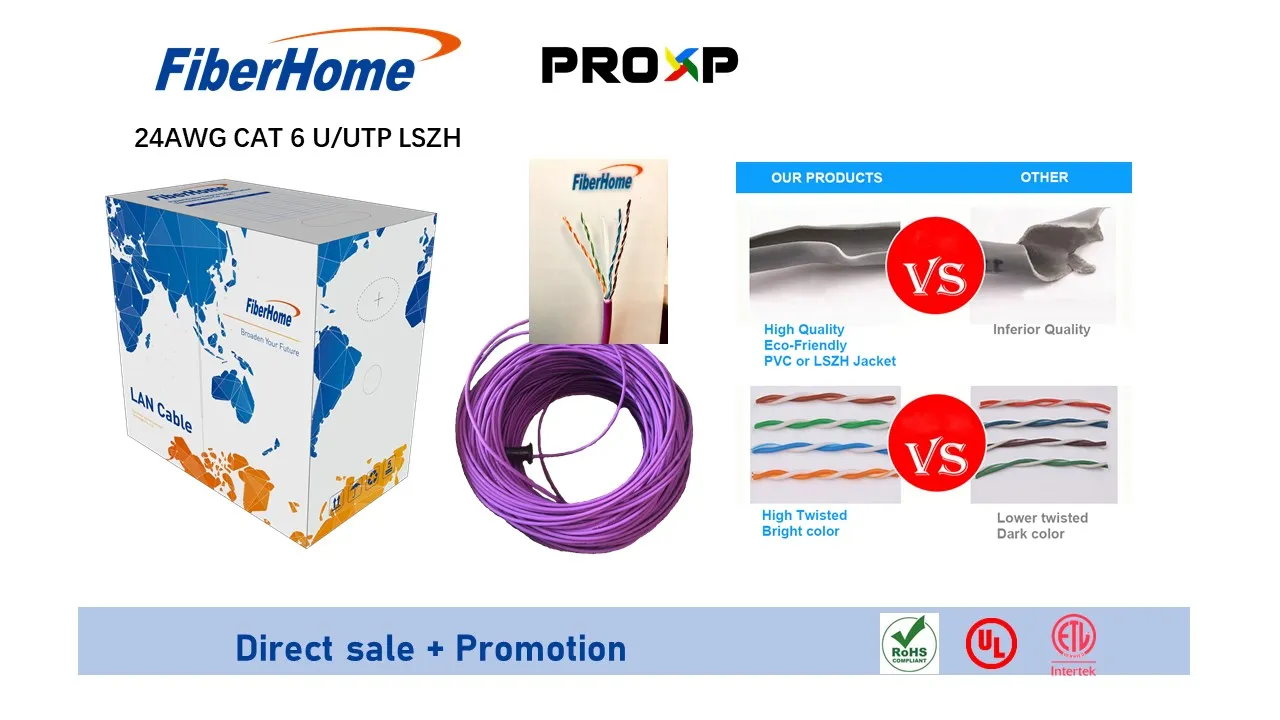

FiberHome CAT 6 24AWG PVC Indoor (LSZH)

Rp 1.230.000

Deskripsi :

Jaket Low Smoke Zero Halogen (LSZH)
Full Copper

Order from Our Marketplace :

FULL SPESIFIKASI
OVERVIEW

Features :
- Bare solid Copper conductor 100BASE-TX
- RoHS compiled PVC/LSZH jacket 100BASE-T4
- ANSI/TIA-568-C.2 & IEC 11801 complied 100BASE-T
- Minimum bending radius: 8XD PoE/PoE+
- Construction U/UTP
- Conductor 24AWG
- Insulation 0.95mm
- No. of Pairs 4
- Cable OD. 5.8 ± 0.5 mm
- Jaket LSZH

Electrical Properties:
- Characteristic Impedance 100 ± 15Ω
- Conductor Resistance (20°C) ≤ 9.38Ω/100m
- Electrical Resistance Unbalance (20°C) ≤ 2.5%
- Insulation Resistance ≥ 5000 MΩ’km
- Pair to Ground Capacitance Unbalance ≤ 330 pF/100m
- Mutual capacitance of a pair ≤ 5.6 nF/100m
- Delay skew ≤ 45ns/100m
