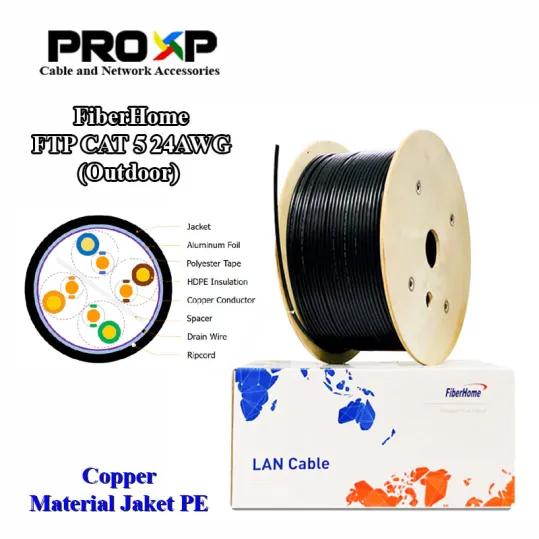

PROXP FiberHome STP FTP Cat 5 24AWG Copper - Jaket PE - Outdoor

Features :
* Bare solid Copper conductor : 100BASE-TX
* RoHS compiled PVC/LSZH jacket : 100BASE-T4
* ANSI/TIA-568-C.2 & IEC 11801 complied : 100BASE-T
* Instailation temperature: -20°C~+60°C : PoE/PoE+
* Minimum bending radius: 8XD Only used in overhead wiring

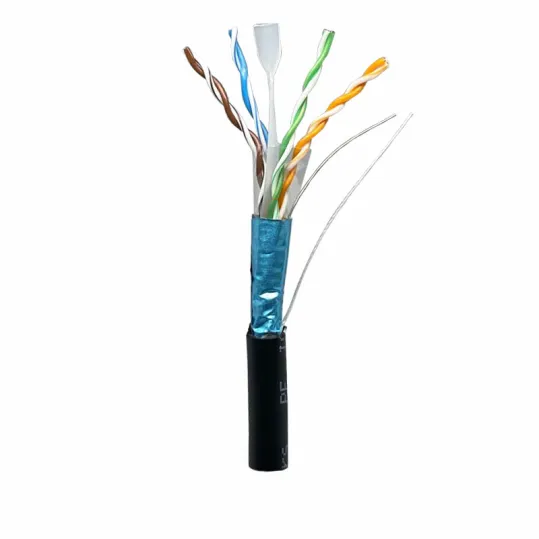

* Construction : F/UTP
* Conductor : 24AWG
* Insulation : 0.97mm ± 0.03mm
* No. of Pairs : 4
* Cable OD : 6.7 ± 0.5 mm
* Jaket : PE

Electrical Properties :
* Characteristic Impedance 100 ± 15Ω
* Conductor Resistance (20°C) ≤ 9.38Ω/100m
* Electrical Resistance Unbalance (20°C) ≤ 2.0%
* Insulation Resistance ≥ 5000 MΩ’km
* Pair to Ground Capacitance Unbalance ≤ 160 pF/100m
* Mutual capacitance of a pair ≤ 5.6 nF/100m
* Delay skew ≤ 45ns/100m

.....Bisa Terbitkan Faktur Pajak/PPN....
