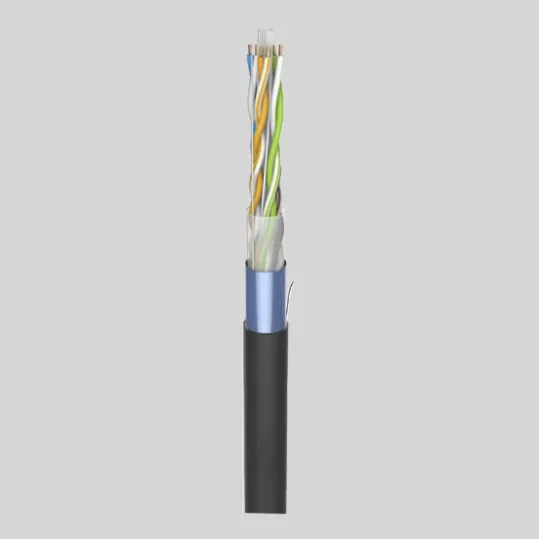

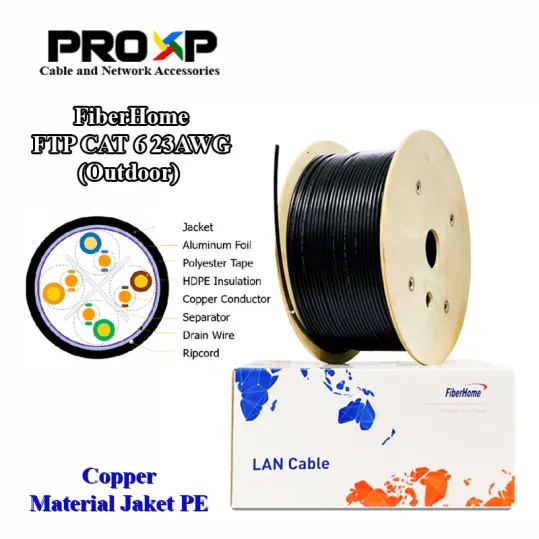

Features : - Bare solid Copper conductor : 100BASE-TX- RoHS compiled PVC/LSZH jacket : 100BASE-T4- ANSI/TIA-568-C.2 & IEC 11801 complied : 100BASE-T (55m max.)- Instailation temperature: -20°C~+60°C : PoE/PoE+- Minimum bending radius: 8XD Only used in overhead wiring- Construction : F/UTP- Conductor : 23AWG- Insulation : 1.09mm ± 0.03mm- No. of Pairs : 4- Cable OD : 7.8 ± 0.5 mm- Jaket : PEElectrical Properties :- Characteristic Impedance 100 ± 15Ω- Conductor Resistance (20°C) ≤ 7.38Ω/100m- Electrical Resistance Unbalance (20°C) ≤ 2.0%- Insulation Resistance ≥ 5000 MΩ’km- Pair to Ground Capacitance Unbalance ≤ 160 pF/100m- Mutual capacitance of a pair ≤ 5.6 nF/100m- Delay skew ≤ 45ns/100m
